95 Series | FIRG ISO 16028 Flat Face Quick Coupling (Steel)
Item specifics
- Interchange
- STUCCHI FIRG SERIES
- Interchange
- DNP PLT1 SERIES
- Interchange
- PARKER FF SERIES
- Interchange
- EATON AEROQUIP FD 89 SERIES
- Interchange
- DIXON HT SERIES
- Interchange
- HANSEN QA29000 SERIES
- Interchange
- SAFEWAY FFE49 SERIES
Review
Description
95 Series
Flat/Flush Face Coupling (Steel)
ISO-16028 & HTMA STANDARD
This EH series is interchangeable with STUCCHI FIRG SERIES, DNP PLT1 SERIES, PARKER FF SERIES, EATON AEROQUIP FD 89 SERIES, DIXON HT SERIES, HANSEN QA29000 SERIES, and SAFEWAY FFE49 SERIES. The 95 Series, renowned as the original ISO 16028-compliant coupling solution, continues to deliver reliable performance, exceptional durability, and competitive value. Its innovative integrated sealing system significantly minimizes premature wear by effectively compensating for three critical stress factors: relative movement between coupling components, sudden pressure impulses, and the constant strain exerted by hose weight during horizontal operation.

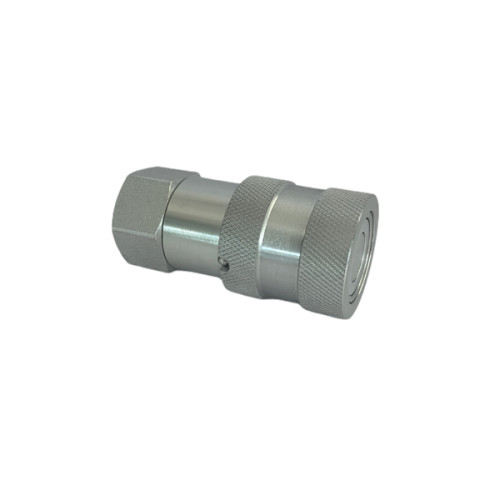

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC9514-1/4" NPT | 1/4'' | 53 | 28 | S22 | 1/4" NPT |
| HFSFC9514-1/4" BSP | 1/4'' | 53 | 28 | S22 | 1/4" BSPP |
HFSFC9514-7/16" UNF | 1/4'' | 53 | 28 | S22 | 7/16" UNF-20 |
HFSFC9538-3/8" NPT | 3/8'' | 64.5 | 32 | S27 | 3/8" NPT |
HFSFC9538-1/2" NPT | 3/8'' | 69.5 | 32 | S27 | 1/2" NPT |
HFSFC9538-3/8" BSP | 3/8'' | 64.5 | 32 | S27 | 3/8" BSPP |
HFSFC9538-1/2" BSP | 3/8'' | 69.5 | 32 | S27 | 1/2" BSPP |
HFSFC9538-9/16" UNF | 3/8'' | 69.5 | 32 | S27 | 9/16" UNF-18 |
HFSFC9538-3/4" UNF | 3/8'' | 69.5 | 32 | S27 | 3/4" UNF-16 |
HFSFC9512-1/2" NPT | 1/2'' | 73.5 | 38 | S32 | 1/2" NPT |
HFSFC9512-3/4" NPT | 1/2'' | 79 | 38 | S36 | 3/4" NPT |
HFSFC9512-1/2" BSP | 1/2'' | 73.5 | 38 | S32 | 1/2" BSPP |
HFSFC9512-3/4" BSP | 1/2'' | 79 | 38 | S36 | 3/4" BSPP |
HFSFC9512-3/4" UNF | 1/2'' | 79 | 38 | S36 | 3/4" UNF-16 |
HFSFC9512-7/8" UNF | 1/2'' | 79 | 38 | S32 | 7/8" UNF-14 |
HFSFC9512-1-1/16" UN | 1/2'' | 80.5 | 38 | S36 | 1-1/16" UN-12 |
HFSFC9558-3/4" NPT | 5/8'' | 80.5 | 42 | S36 | 3/4" NPT |
HFSFC9534-3/4" NPT | 3/4'' | 93 | 48 | S41 | 3/4" NPT |
HFSFC9534-3/4" BSP | 3/4'' | 93 | 48 | S41 | 3/4" BSPP |
HFSFC9534-1" NPT | 3/4'' | 93 | 48 | S41 | 1" NPT |
HFSFC9534-1" BSP | 3/4'' | 93 | 48 | S41 | 1" BSPP |
HFSFC9534-1-1/16" UN | 3/4'' | 93 | 48 | S41 | 1-1/16" UN-12 |
HFSFC9534-1-5/16" UN | 3/4'' | 93 | 48 | S41 | 1-5/16" UN-12 |
HFSFC9510-1" NPT | 1'' | 93.5 | 56.5 | S46 | 1" NPT |
HFSFC9510-1" BSP | 1'' | 93.5 | 56.5 | S46 | 1" BSPP |
HFSFC9510-1-1/4" NPT | 1'' | 98 | 56.5 | S55 | 1-1/4" NPT |
HFSFC9510-1-1/4" BSP | 1'' | 98 | 56.5 | S55 | 1-1/4" BSPP |
HFSFC9510-1-5/16" UN | 1'' | 98 | 56.5 | S55 | 1-5/16" UN-12 |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||

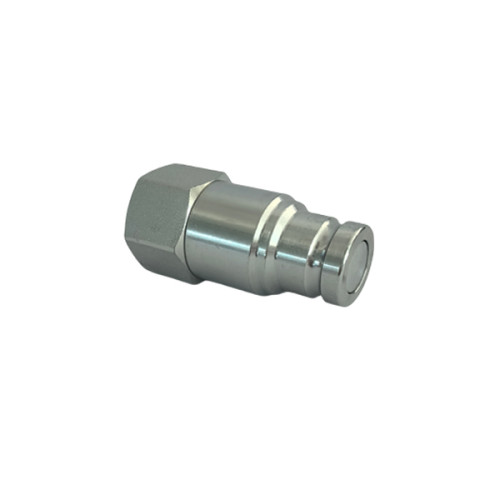

| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9514-1/4" NPT | 1/4'' | 50 | S22 | 1/4" NPT |
| HFSFP9514-1/4" BSP | 1/4'' | 50 | S22 | 1/4" BSPP |
HFSFP9514-7/16" UNF | 1/4'' | 50 | S22 | 7/16" UNF-20 |
HFSFP9538-3/8" NPT | 3/8'' | 60 | S27 | 3/8" NPT |
HFSFP9538-1/2" NPT | 3/8'' | 62 | S27 | 1/2" NPT |
HFSFP9538-3/8" BSP | 3/8'' | 60 | S27 | 3/8" BSPP |
HFSFP9538-1/2" BSP | 3/8'' | 63 | S27 | 1/2" BSPP |
HFSFP9538-9/16" UNF | 3/8'' | 63 | S27 | 9/16" UNF-18 |
HFSFP9538-3/4" UNF | 3/8'' | 63 | S27 | 3/4" UNF-16 |
HFSFP9512-1/2" NPT | 1/2'' | 68 | S32 | 1/2" NPT |
HFSFP9512-3/4" NPT | 1/2'' | 69.5 | S36 | 3/4" NPT |
HFSFP9512-1/2" BSP | 1/2'' | 68 | S32 | 1/2" BSPP |
HFSFP9512-3/4" BSP | 1/2'' | 69.5 | S36 | 3/4" BSPP |
HFSFP9512-3/4" UNF | 1/2'' | 69.5 | S36 | 3/4" UNF-16 |
HFSFP9512-7/8" UNF | 1/2'' | 69.5 | S32 | 7/8" UNF-14 |
HFSFP9512-1-1/16" UN | 1/2'' | 70.5 | S36 | 1-1/16" UN-12 |
HFSFP9558-3/4" NPT | 5/8'' | 70.5 | S36 | 3/4" NPT |
HFSFP9534-3/4" NPT | 3/4'' | 82.5 | S41 | 3/4" NPT |
HFSFP9534-3/4" BSP | 3/4'' | 82.5 | S41 | 3/4" BSPP |
HFSFP9534-1" NPT | 3/4'' | 82.5 | S41 | 1" NPT |
HFSFP9534-1" BSP | 3/4'' | 82.5 | S41 | 1" BSPP |
HFSFP9534-1-1/16" UN | 3/4'' | 82.5 | S41 | 1-1/16" UN-12 |
HFSFP9534-1-5/16" UN | 3/4'' | 82.5 | S41 | 1-5/16" UN-12 |
HFSFP9510-1" NPT | 1'' | 89 | S46 | 1" NPT |
HFSFP9510-1" BSP | 1'' | 89 | S46 | 1" BSPP |
HFSFP9510-1-1/4" NPT | 1'' | 92 | S55 | 1-1/4" NPT |
HFSFP9510-1-1/4" BSP | 1'' | 92 | S55 | 1-1/4" BSPP |
HFSFP9510-1-5/16" UN | 1'' | 92 | S55 | 1-5/16" UN-12 |
Accessories
Dash Size | ISO Size | Art. No. Dust Cap For Coupler | Art. No. Dust Cap For Plug | Material |
04 | 6.3 | ISO16028-6-C-P | ISO16028-6-P-P | PVC |
06 | 10 | ISO16028-10-C-P | ISO16028-10-P-P | PVC |
08 | 12.5 | ISO16028-12-C-P | ISO16028-12-P-P | PVC |
10 | 16 | ISO16028-16-C-P | ISO16028-16-P-P | PVC |
12 | 19 | ISO16028-19-C-P | ISO16028-19-P-P | PVC |
16 | 25 | ISO16028-25-C-P | ISO16028-25-P-P | PVC |
