65 Series | ISO 5676 IFR Brake Quick Coupling (Steel)
Item specifics
- Interchange
- FASTER VF SERIES
- Interchange
- STUCCHI IFR SERIES
- Interchange
- DNP PFT SERIES
- Interchange
- VOSWINKEL BP SERIES
- Interchange
- GROMELLE 609-A SERIES
- Interchange
- HOLMBURY TB SERIES
- Interchange
- FASTER VFB SERIES
Review
Description
65 Series
Trailer Brake Coupling (STEEL)
ISO-5676 Standard
This EH series is interchangeable with FASTER VF SERIES, FASTER VFB SERIES, STUCCHI IFR SERIES, DNP PFT SERIES, VOSWINKEL BP SERIES, GROMELLE 609-A SERIES, and HOLMBURY TB SERIES. Flat-face hydraulic couplings specifically designed for connecting trailer braking systems to agricultural machinery hydraulic circuits. ISO 5676 compliant.

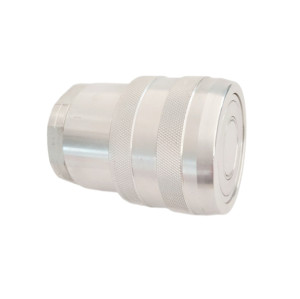

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | H2(mm) | T |
| HFSFC6538-M18x1.5 | 3/8'' | 59 | 45 | S27 | M18x1.5 |
| HFSFC6538-M22x1.5 | 3/8'' | 59 | 45 | S27 | M22x1.5 |
HFSFC6538-3/8'' | 3/8'' | 57 | 45 | S27 | 3/8'' BSPP |
HFSFC6538-1/2'' | 3/8'' | 57 | 45 | S27 | 1/2'' BSPP |

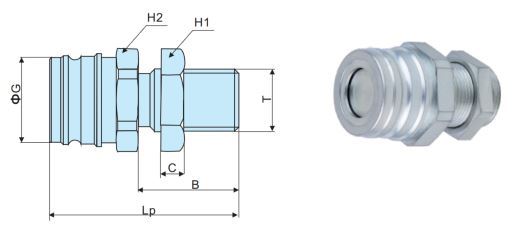

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||
| Art. No. | Body Size (inch) | Lp(mm) | B(mm) | G(mm) | C(mm) | H1(mm) | H2(mm) | T |
| HFSMP 6538-M18x1.5 | 3/8'' | 51 | 23 | 30 | 6 | S27 | S32 | M18x1.5 |
| HFSMP 6538-M22x1.5 | 3/8'' | 51 | 23 | 30 | 7 | S30 | S32 | M22x1.5 |
HFSMP 6538-1/2'' | 3/8'' | 62 | 34 | 30 | 8 | S30 | S32 | 1/2" BSPP |
HFSMP 6538-3/8'' | 3/8'' | 62 | 34 | 30 | 8 | S30 | S32 | 3/8'' BSPP |

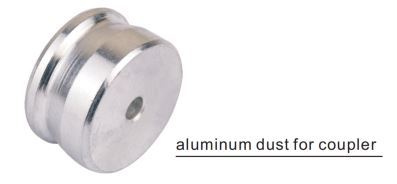

Accessories
