EHTV Series | NDV Needle Flow Control Valve (Steel)
Item specifics
- Interchange
- MHA NDV SERIES
- Interchange
- HYDAC DV SERIES
- Interchange
- PARKER N SERIES
- Interchange
- GEMELS RF SERIES
Review
Description

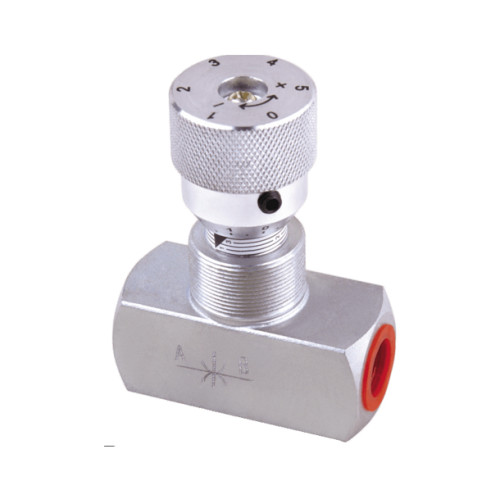

EHTV Series
Needle Valve (Steel)
This EH series is interchangeable with MHA NDV SERIES, HYDAC DV SERIES, PARKER N SERIES, and GEMELS RF SERIES. One-way valve for flow control use. Suitable for any type of hydraulic system using liquid that is not highly viscous. The standard type is in zinc-plated carbon steel. It is mainly used in non-corrosive mineral-based oils and liquids.
Dimensions
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||
| Art. No. | Body Size (inch) | Ls(mm) | C(mm) | D(mm) | E(mm) | H(mm) | H1(mm) | H2(mm) | T |
| EHCV14 | 1/4'' | 50 | 20 | M20X1 | 30 | 66 | 7 | 7 | 1/4"BSPP(NPT) |
| EHCV38 | 3/8'' | 57 | 25 | M25X1 | 30 | 72 | 7 | 7 | 3/8"BSPP(NPT) |
EHCV12 | 1/2'' | 67 | 30 | M30X1.5 | 45 | 92.5 | 10 | 10 | 1/2"BSPP(NPT) |
EHCV34 | 3/4'' | 82.5 | 40 | M35X1.5 | 45 | 105 | 10 | 11 | 3/4"BSPP(NPT) |
EHCV10 | 1'' | 93 | 45 | M35X1.5 | 45 | 115 | 10 | 15 | 1"BSPP(NPT) |
