EHRV Series | VU In-Line Check Valve (Steel)
Item specifics
- Interchange
- MHA RV SERIES
- Interchange
- FASTER VU SERIES
- Interchange
- STUCCHI VUZ SERIES
- Interchange
- GROMELLE R4000 SERIES
- Interchange
- GEMELS VU SERIES
- Interchange
- HOLMBURY CV SERIES
Review
Description

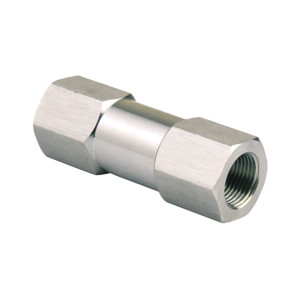

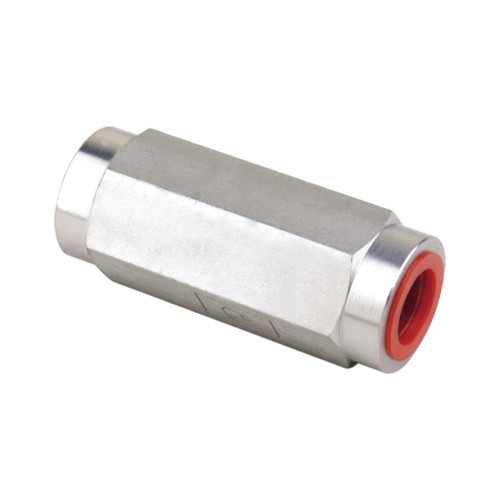

EHRV Series
In-Line Check Valve (Steel)
This EH series is interchangeable with MHA RV SERIES, FASTER VU SERIES, STUCCHI VUZ SERIES, GROMELLE R4000 SERIES, GEMELS VU SERIES, and HOLMBURY CV SERIES. Steel Product. One-way check valve for in-line use. Suitable for any type of hydraulic system using liquid that is not highly viscous. The standard type is in zinc-plated carbon steel, and it is suitable for non-corrosive mineral-based oils and liquids.
Dimensions
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size(Inch) | A(mm) | C(mm) | CH(mm) | T |
| EHRV14 | 1/4'' | 60 | 18.5 | 19 | 1/4"BSPP(NPT) |
| EHRV38 | 3/8'' | 70 | 23.5 | 24 | 3/8"BSPP(NPT) |
EHRV12 | 1/2'' | 77 | 29.5 | 30 | 1/2"BSPP(NPT) |
EHRV34 | 3/4'' | 90 | 35.5 | 36 | 3/4"BSPP(NPT) |
EHRV10 | 1'' | 106 | 44.5 | 45 | 1"BSPP(NPT) |
EHRV114 | 1-1/4'' | 125 | 54.5 | 55 | 1-1/4"BSPP(NPT) |
EHRV112 | 1-1/2'' | 140 | 64.5 | 65 | 1-1/2"BSPP(NPT) |
EHRV20 | 2'' | 160 | 74.5 | 75 | 2"BSPP(NPT) |
