EHV Series | BKH Two-Way Block High Pressure Ball Valve (Steel)
Item specifics
- Interchange
- PISTER BKH SERIES
- Interchange
- MHA BKH SERIES
- Interchange
- HYDAC KHB SERIES
- Interchange
- HYDAC KHM SERIES
- Interchange
- GEMELS GE2 SERIES
- Interchange
- CIOCCA CRHI2 SERIES
- Interchange
- HOLMBURY BVC2 SERIES
Review
Description

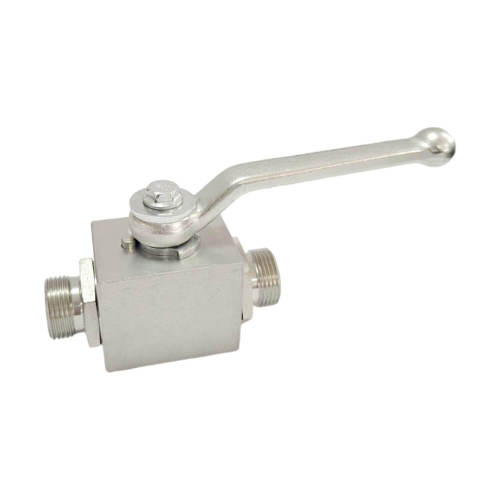

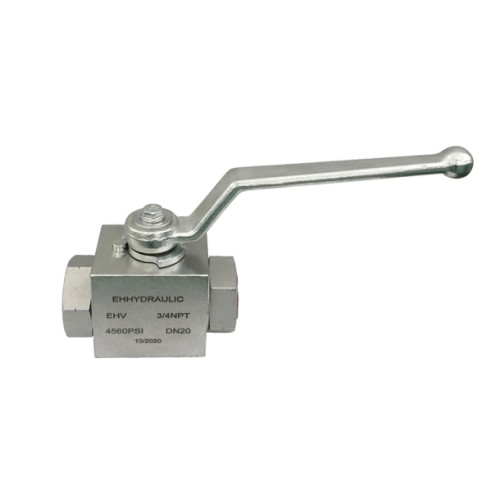

EHV Series
Two-Way High Pressure Ball Valve (Steel)

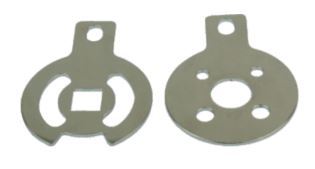

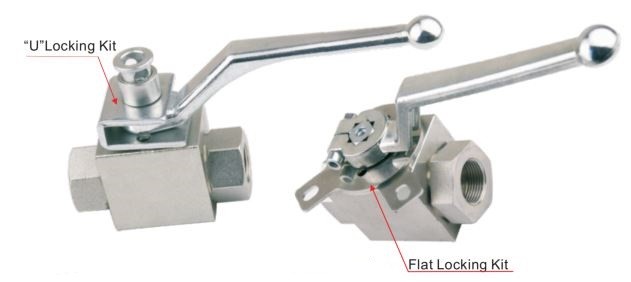

This EH series is interchangeable with PISTER BKH SERIES, MHA BKH SERIES, HYDAC KHB SERIES, HYDAC KHM SERIES, GEMELS GE2 SERIES, CIOCCA CRHI2 SERIES, and HOLMBURY BVC2 SERIES. Steel Product. Two-way high-pressure ball valve (carbon steel), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.

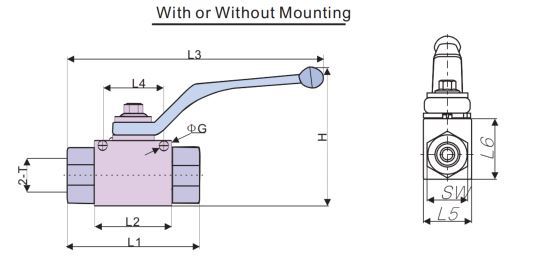

Body Size
| Other Threads/Fitting Ends Are Available Upon Request | ||||||||||
| Art. No. | Body Size (Inch) | L1(mm) | L2(mm) | L3(mm) | H(mm) | G(mm) | L4(mm) | L5(mm) | L6(mm) | T |
EHV18 | 1/8'' | 69 | 40 | 154.1 | 73 | 4.5 | 26 | 26 | 33 | 1/8'' BSPP(NPT) |
EHV14 | 1/4'' | 69 | 40 | 145 | 71 | 4.5 | 26 | 26 | 33 | 1/4'' BSPP(NPT) |
EHV38 | 3/8'' | 71 | 42 | 145 | 70.5 | 6.5 | 32 | 33 | 38 | 3/8'' BSPP(NPT) |
EHV12 | 1/2'' | 82 | 48 | 161 | 81 | 6.5 | 37.5 | 36 | 40 | 1/2'' BSPP(NPT) |
EHV34 | 3/4'' | 96 | 62 | 218 | 112 | 6.5 | 45 | 49 | 57 | 3/4'' BSPP(NPT) |
EHV10 | 1'' | 113 | 66 | 226.5 | 120 | 6.5 | 55 | 58 | 65 | 1'' BSPP(NPT) |
EHV10-114 | 1'' | 120 | 66 | 229.8 | 120 | 6.5 | 55 | 58 | 65 | 1-1/4'' BSPP(NPT) |
EHV10-112 | 1'' | 130 | 66 | 234.8 | 120 | 6.5 | 55 | 58 | 65 | 1-1/2'' BSPP(NPT) |
EHV114 | 1-1/4'' | 120 | 80 | 295 | 170 | / | / | 82 | 87 | 1-1/4'' BSPP(NPT) |
EHV112 | 1-1/2'' | 130 | 85 | 305 | 174.5 | / | / | 93 | 99 | 1-1/2'' BSPP(NPT) |
EHV20 | 2'' | 140 | 100 | 305 | 197 | / | / | 110 | 115 | 2'' BSPP(NPT) |
Thread Size

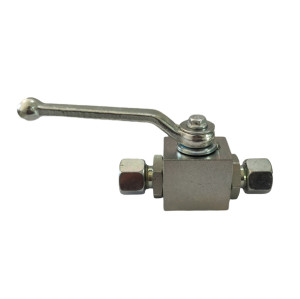

| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV18-G1/8 | G1/8 | / | 69 | 10 | 22 |
| EHV14-G1/4 | G1/4 | / | 69 | 13.5 | 22 |
EHV38-G3/8 | G3/8 | / | 71 | 14 | 27 |
EHV12-G1/2 | G1/2 | / | 82 | 16.5 | 30 |
EHV34-G3/4 | G3/4 | / | 95 | 18 | 41 |
EHV10-G1 | G1 | / | 113 | 20 | 50 |
EHV10-G114 | G1-14 | / | 120 | 22 | 50 |
EHV10-G112 | G1-12 | / | 129 | 25 | 60 |
EHV114-G114 | G1-14 | / | 120 | 29 | 60 |
EHV112-G112 | G1-12 | / | 130 | 28 | 70 |
EHV20-G2 | G2 | / | 140 | 29 | 85 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV18-1/8NPT | 1/8NPT | / | 69 | 10.5 | 22 |
| EHV14-1/4NPT | 1/4NPT | / | 69 | 15 | 22 |
EHV38-3/8NPT | 3/8NPT | / | 71 | 15.5 | 27 |
EHV12-1/2NPT | 1/2NPT | / | 82 | 17 | 30 |
EHV34-3/4NPT | 3/4NPT | / | 95 | 20.5 | 41 |
EHV10-1NPT | 1NPT | / | 113 | 25 | 50 |
EHV10-114NPT | 1-1/4NPT | / | 120 | 22 | 50 |
EHV10-112NPT | 1-1/2NPT | / | 129 | 22 | 60 |
EHV114-114NPT | 1-1/4NPT | / | 120 | 29 | 60 |
EHV112-112NPT | 1-1/2NPT | / | 130 | 30 | 70 |
EHV20-2NPT | 2NPT | / | 140 | 30 | 85 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-10S | M18X1.5 | 10 | 73 | 12 | 22 |
| EHV-12S | M20X1.5 | 12 | 77 | 12 | 27 |
EHV-16S | M24X1.5 | 16 | 87 | 14 | 30 |
EHV-20S | M30X2 | 20 | 91 | 16 | 32 |
EHV-25S | M36X2 | 25 | 111 | 18 | 41 |
EHV-30S | M42X2 | 30 | 120 | 20 | 50 |
EHV-38S | M52X2 | 38 | 141 | 22 | 60 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-8L | M14X1.5 | 8 | 69 | 10 | 22 |
| EHV-10L | M16X1.5 | 10 | 77 | 11 | 27 |
EHV-12L | M18X1.5 | 12 | 77 | 11 | 27 |
EHV-15L | M22X1.5 | 15 | 83 | 12 | 30 |
EHV-22L | M30X2 | 22 | 103 | 14 | 41 |
EHV-28L | M36X2 | 28 | 107.5 | 14 | 55 |
EHV-35L | M45X2 | 35 | 135 | 16 | 60 |
EHV-42L | M52X2 | 42 | 142 | 16 | 70 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHV-SAE4 | 7/16-20UNF | / | 69 | 14 | 22 |
| EHV-SAE6 | 9/16-18UNF | / | 71 | 15.5 | 27 |
EHV-SAE8 | 3/4-16UNF | / | 82 | 18 | 30 |
EHV-SAE12 | 1-1/16-12UN | / | 101 | 23.5 | 41 |
EHV-SAE16 | 1-5/16-12UN | / | 113 | 23 | 50 |
EHV-SAE20 | 1-5/8-12UN | / | 120 | 25 | 60 |
EHV-SAE24 | 1-7/8-12UN | / | 130 | 25 | 70 |
EHV-SAE32 | 2-1/2-12UN | / | 140 | 25 | 80 |
