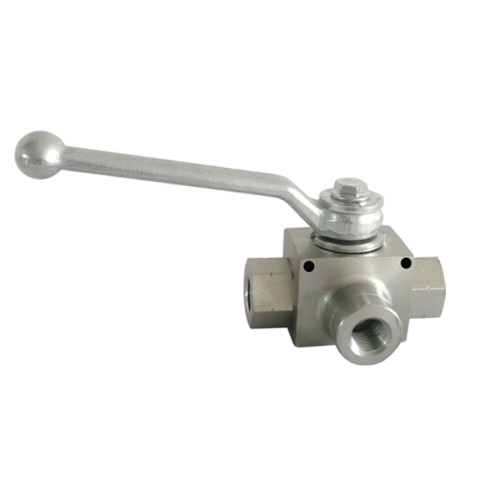

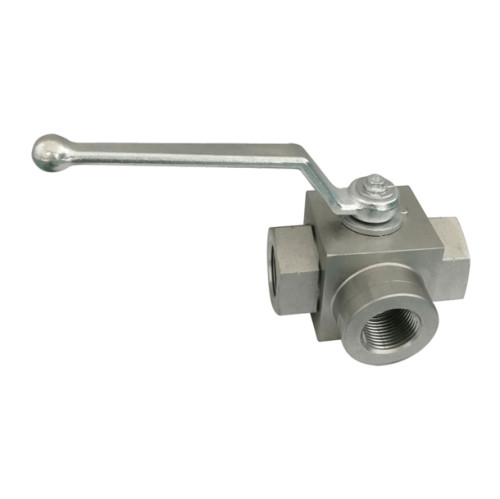

EHVL Series | BK3 Three-Way Diverter High-Pressure Ball Valve - L Type (Steel)
Item specifics
- Interchange
- PISTER BK3 SERIES
- Interchange
- MHA BK3 SERIES
- Interchange
- HYDAC KHB3K SERIES
- Interchange
- GEMELS GE3 SERIES
- Interchange
- CIOCCA CRHI3 SERIES
Review
Description
EHVL Series
Three-Way L Type High Pressure Ball Valve (Steel)
This EH series is interchangeable with PISTER BK3 SERIES, MHA BK3 SERIES, HYDAC KHB3K SERIES, GEMELS GE3 SERIES, and CIOCCA CRHI3 SERIES. Steel Product. Three-way high-pressure ball valve -L Type (steel), used in various industries including construction, agricultural machinery, water engineering, mining engineering, and paint industries.
Body Size
| Other Threads/Fitting Ends Are Available Upon Request | |||||||||||
| Art. No. | Body Size (Inch) | LW(mm) | L1(mm) | L2(mm) | L3(mm) | H(mm) | L4xG(mm) | L5(mm) | L6(mm) | L7(mm) | T |
EHVL18 | 1/8'' | 4 | 69 | 40 | 154.1 | 73 | 26X4.5 | 29 | 33 | 47.5 | 1/8'' BSPP(NPT) |
EHVL14 | 1/4'' | 6 | 69 | 40 | 145 | 71 | 26X4.5 | 29 | 33 | 47.5 | 1/4'' BSPP(NPT) |
EHVL38 | 3/8'' | 10 | 71 | 42 | 145 | 76.5 | 32X6.5 | 35 | 38 | 52 | 3/8'' BSPP(NPT) |
EHVL12 | 1/2'' | 13 | 82 | 48 | 160.9 | 81 | 37.5X6.5 | 38 | 40 | 59 | 1/2'' BSPP(NPT) |
EHVL34 | 3/4'' | 20 | 96 | 62 | 218 | 112 | 45X6.5 | 52 | 57 | 72 | 3/4'' BSPP(NPT) |
EHVL10 | 1'' | 25 | 113 | 66 | 226.5 | 120 | 55X6.5 | 61 | 65 | 85 | 1'' BSPP(NPT) |
EHVL10-114 | 1'' | 25 | 120 | 66 | 229.8 | 120 | 55X6.5 | 61 | 65 | 85 | 1-1/4'' BSPP(NPT) |
EHVL10-112 | 1'' | 25 | 130 | 66 | 235 | 120 | 55X6.5 | 61 | 65 | 84.5 | 1-1/2'' BSPP(NPT) |
EHVL114 | 1-1/4'' | 32 | 120 | 80 | 295 | 170 | / | 82 | 88 | 101 | 1-1/4'' BSPP(NPT) |
EHVL112 | 1-1/2'' | 38 | 130 | 85 | 300 | 174.5 | / | 93 | 97 | 118 | 1-1/2'' BSPP(NPT) |
EHVL20 | 2'' | 48 | 140 | 100 | 305 | 197 | / | 110 | 115 | 128 | 2'' BSPP(NPT) |
Thread Size
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVL18-G1/8 | G1/8 | / | 69 | 10 | 22 |
| EHVL14-G1/4 | G1/4 | / | 69 | 13.5 | 22 |
EHVL38-G3/8 | G3/8 | / | 71 | 14 | 27 |
EHVL12-G1/2 | G1/2 | / | 82 | 16.5 | 30 |
EHVL34-G3/4 | G3/4 | / | 95 | 18 | 41 |
EHVL10-G1 | G1 | / | 113 | 20 | 50 |
EHVL10-G114 | G1-1/4 | / | 120 | 22 | 50 |
EHVL10-G112 | G1-1/2 | / | 129 | 25 | 60 |
EHVL114-G114 | G1-1/4 | / | 120 | 29 | 60 |
EHVL112-G112 | G1-1/2 | / | 130 | 28 | 70 |
EHVL20-G2 | G2 | / | 140 | 29 | 85 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVL18-1/8NPT | 1/8NPT | / | 69 | 10.5 | 22 |
| EHVL14-1/4NPT | 1/4NPT | / | 69 | 15 | 22 |
EHVL38-3/8NPT | 3/8NPT | / | 71 | 15.5 | 27 |
EHVL12-1/2NPT | 1/2NPT | / | 82 | 17 | 30 |
EHVL34-3/4NPT | 3/4NPT | / | 95 | 20.5 | 41 |
EHVL10-1NPT | 1NPT | / | 113 | 25 | 50 |
EHVL10-114NPT | 1-1/4NPT | / | 120 | 22 | 50 |
EHVL10-112NPT | 1-1/2NPT | / | 129 | 22 | 60 |
EHVL114-114NPT | 1-1/4NPT | / | 120 | 29 | 60 |
EHVL112-112NPT | 1-1/2NPT | / | 130 | 30 | 70 |
EHVL20-2NPT | 2NPT | / | 140 | 30 | 85 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVL-10S | M18X1.5 | 10 | 73 | 12 | 22 |
| EHVL-12S | M20X1.5 | 12 | 77 | 12 | 27 |
EHVL-16S | M24X1.5 | 16 | 87 | 14 | 30 |
EHVL-20S | M30X2 | 20 | 91 | 16 | 32 |
EHVL-25S | M36X2 | 25 | 111 | 18 | 41 |
EHVL-30S | M42X2 | 30 | 120 | 20 | 50 |
EHVL-38S | M52X2 | 38 | 147 | 22 | 60 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVL-8L | M14X1.5 | 8 | 69 | 10 | 22 |
| EHVL-10L | M16X1.5 | 10 | 77 | 11 | 27 |
EHVL-12L | M18X1.5 | 12 | 77 | 11 | 27 |
EHVL-15L | M22X1.5 | 15 | 83 | 12 | 30 |
EHVL-22L | M30X2 | 22 | 103 | 14 | 41 |
EHVL-28L | M36X2 | 28 | 107.5 | 14 | 55 |
EHVL-35L | M45X2 | 35 | 135 | 16 | 60 |
EHVL-42L | M52X2 | 42 | 142 | 16 | 70 |
| Art. No. | D | RA(mm) | L(mm) | i(mm) | SW1(mm) |
| EHVL-SAE4 | 7/16-20UNF | / | 69 | 14 | 22 |
| EHVL-SAE6 | 9/16-18UNF | / | 71 | 15.5 | 27 |
EHVL-SAE8 | 3/4-16UNF | / | 82 | 18 | 30 |
EHVL-SAE12 | 1-1/16-12UN | / | 101 | 23.5 | 41 |
EHVL-SAE16 | 1-5/16-12UN | / | 113 | 23 | 50 |
EHVL-SAE20 | 1-5/8-12UN | / | 120 | 25 | 60 |
EHVL-SAE24 | 1-7/8-12UN | / | 130 | 25 | 70 |
EHVL-SAE32 | 2-1/2-12UN | / | 140 | 25 | 80 |
