297 Series | ISO 16028 VEP Threaded Flat Face Quick Coupling (Steel)
Item specifics
- Interchange
- STUCCHI VEP-P SERIES
- Interchange
- PARKER FET SERIES
- Interchange
- FASTER FHV SERIES
- Interchange
- DNP PST4 SERIES
- Interchange
- VOSWINKEL FT SERIES
- Interchange
- DIXON VEP SERIES
- Interchange
- HOLMBURY HFT SERIES
Review
Description
297 Series
Threaded Flat Face Coupling (Steel)
ISO-16028 Standard, Connect Under Pressure
This EH series is interchangeable with STUCCHI VEP-P SERIES, PARKER FET SERIES, FASTER FHV SERIES, DNP PST4 SERIES, VOSWINKEL FT SERIES, DIXON VEP SERIES, and HOLMBURY HFT SERIES. Engineered for demanding hydraulic systems, the 297 Series provides reliable performance in applications subject to extreme pressure impulses and residual line pressures. The innovative thread-to-connect design significantly reduces wear and prevents brinelling, while the internal valve technology enables safe connection and disconnection even under high residual pressure conditions.

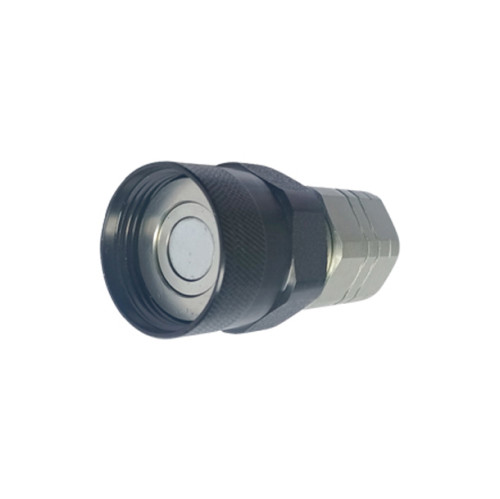

Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | E(mm) | Hs(mm) | Hq(mm) | Ls(mm) | T |
| HFSFC29738 -3/8"NPT | 3/8'' | 41.8 | S30 | S38 | 70 | 3/8"NPT |
| HFSFC29738 -3/8"G | 3/8'' | 41.8 | S30 | S38 | 70 | 3/8"BSPP |
HFSFC29738 -1/2"NPT | 3/8'' | 41.8 | S30 | S38 | 71.5 | 1/2"NPT |
HFSFC29738 -1/2"G | 3/8'' | 41.8 | S30 | S38 | 71.5 | 1/2"BSPP |
HFSFC29712 -1/2"NPT | 1/2'' | 49.8 | S36 | S46 | 78 | 1/2"NPT |
HFSFC29712 -1/2"G | 1/2'' | 49.8 | S36 | S46 | 78 | 1/2"BSPP |
HFSFC29712-1- 1/16" UN | 1/2'' | 49.8 | S36 | S46 | 85 | 1-1/16"UN-12 |
HFSFC29758- 3/4"NPT | 5/8'' | 53.8 | S41 | S50 | 85 | 5/8"NPT |
HFSFC29758-1- 1/16" UN | 5/8'' | 53.8 | S41 | S50 | 85 | 1-1/16"UN-12 |
HFSFC29734- 1"NPT | 3/4'' | 58.8 | S46 | S55 | 99 | 1"NPT |
HFSFC29734-1"G | 3/4'' | 58.8 | S46 | S55 | 99 | 1"BSPP |
HFSFC29734-1- 1/16" UN | 3/4'' | 58.8 | S46 | S55 | 99 | 1-1/16"UN-12 |
HFSFC29734-1- 5/16" UN | 3/4'' | 58.8 | S46 | S55 | 99 | 1-5/16"UN-12 |
HFSFC29710-1- 1/4" NPT | 1'' | 70 | S55 | S65 | 106 | 1-1/4"NPT |
HFSFC29710-1- 1/4"G | 1'' | 70 | S55 | S65 | 106 | 1-1/4"BSPP |
HFSFC29710-1- 5/16" UN | 1'' | 70 | S55 | S65 | 105 | 1-5/16"UN-12 |
HFSFC29710-1- 5/8" UN | 1'' | 70 | S55 | S65 | 106 | 1-5/8"UN-12 |
HFSFC297112-1- 1/2" NPT | 1-1/2'' | 92 | S65 | S85 | 133.5 | 1-1/2"NPT |
HFSFC297112-1- 1/2"G | 1-1/2'' | 92 | S65 | S85 | 133.5 | 1-1/2"BSPP |
HFSFC297112-1- 5/8" UN | 1-1/2'' | 92 | S65 | S85 | 133.5 | 1-5/8"UN-12 |
HFSFC297112-1- 7/8" UN | 1-1/2'' | 92 | S65 | S85 | 133.5 | 1-7/8"UN -12 |

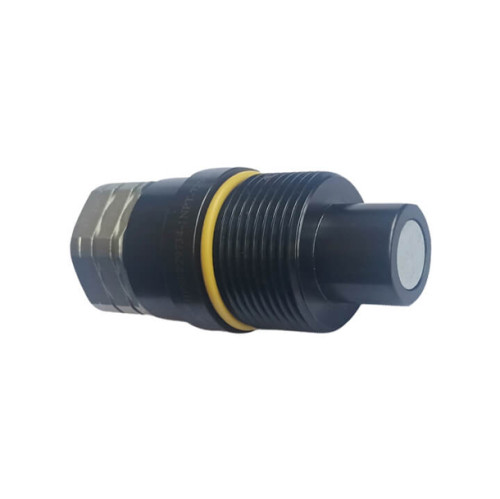

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | N | M(mm) | Hp(mm) | Lp(mm) | T |
| HFSFP29738 -3/8"NPT | 3/8'' | M33x2 | 37.8 | 27 | 82.5 | 3/8"NPT |
| HFSFP29738-3/8"G | 3/8'' | M33x2 | 37.8 | 27 | 82.5 | 3/8"BSPP |
HFSFP29738 -1/2"NPT | 3/8'' | M33x2 | 37.8 | 27 | 86 | 1/2"NPT |
HFSFP29738 -1/2"G | 3/8'' | M33x2 | 37.8 | 27 | 86 | 1/2"BSPP |
HFSFP29712 -1/2"NPT | 1/2'' | M40x3 | 45.8 | 36 | 97 | 1/2"NPT |
HFSFP29712-1/2"G | 1/2'' | M40x3 | 45.8 | 36 | 97 | 1/2"BSPP |
HFSFP29712 -1-1/16" UN | 1/2'' | M40x3 | 45.8 | 36 | 99 | 1-1/16"UN-12 |
HFSFP29758 -3/4"NPT | 5/8'' | M45x3 | 49.8 | 36 | 99 | 5/8"NPT |
HFSFP29758 -1-1/16" UN | 5/8'' | M45x3 | 49.8 | 36 | 99 | 1-1/16"UN-12 |
HFSFP29734 -1"NPT | 3/4'' | M50x3 | 54.8 | 46 | 114 | 1"NPT |
HFSFP29734-1"G | 3/4'' | M50x3 | 54.8 | 46 | 114 | 1"BSPP |
HFSFP29734 -1-1/16" UN | 3/4'' | M50x3 | 54.8 | 46 | 114 | 1-1/16"UN-12 |
HFSFP29734 -1-5/16" UN | 3/4'' | M50x3 | 54.8 | 46 | 114 | 1-5/16"UN-12 |
HFSFP29710 -1-1/4" NPT | 1'' | M58x3 | 64.5 | 55 | 123.5 | 1-1/4"NPT |
HFSFP29710 -1-1/4"G | 1'' | M58x3 | 64.5 | 55 | 123.5 | 1-1/4"BSPP |
HFSFP29710 -1-5/16" UN | 1'' | M58x3 | 64.5 | 55 | 123.5 | 1-5/16"UN-12 |
HFSFP29710 -1-5/8" UN | 1'' | M58x3 | 64.5 | 55 | 123.5 | 1-5/8"UN-12 |
HFSFP297112 -1-1/2" NPT | 1-1/2'' | M80x4 | 89.8 | 65 | 150 | 1-1/2"NPT |
HFSFP297112 -1-1/2"G | 1-1/2'' | M80x4 | 89.8 | 65 | 150 | 1-1/2"BSPP |
HFSFP297112 -1-5/8" UN | 1-1/2'' | M80x4 | 89.8 | 65 | 150 | 1-5/8"UN-12 |
HFSFP297112 -1-7/8" UN | 1-1/2'' | M80x4 | 89.8 | 65 | 150 | 1-7/8"UN-12 |
Accessories
| Dash Size | ISO Size | Art. No. Dust Cap For Coupler | Art. No.
Dust Cap For Plug | Material |
| 06 | 10 | 297-3/8-P-AL | 297-3/8-C-AL | Aluminum |
08 | 12.5 | 297-1/2-P-AL | 297-1/2-C-AL | Aluminum |
10 | 16 | 297-5/8-P-AL | 297-5/8-C-AL | Aluminum |
12 | 19 | 297-3/4-P-AL | 297-3/4-C-AL | Aluminum |
| 16 | 25 | 297-1-P-AL | 297-1-C-AL | Aluminum |
| 24 | 38 | 297-1-1/2-P-AL | 297-1-1/2-C-AL | Aluminum |
