241 Series | PARKER 1141 Connect Under Pressure Stainless Quick Couplings (AISI 316 Stainless Steel)
Item specifics
- Interchange
- PARKER 1141 SERIES
- Interchange
- SNAP-TITE H SERIES
Review
Description

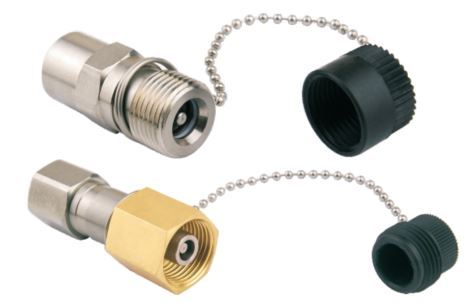

241 Series
High-Pressure Screw-To-Connect Coupling (AISI 316 Stainless Steel)-Connect Under Pressure
This EH series is interchangeable with SNAP-TITE H SERIES and PARKER 1141 SERIES. This series is mainly used in offshore equipment and hydraulic lines in a corrosive environment. Rated pressure up to 10,000 PSI. Small diameter mating seal keeps separate forces to a minimum, allowing easier threaded connection and disconnection at pressures up to 5000 PSI. Self-locking threads guard against accidental disconnection. Visual connection indicator- when fully coupled, the sleeve edge is flush with the end of the male thread.

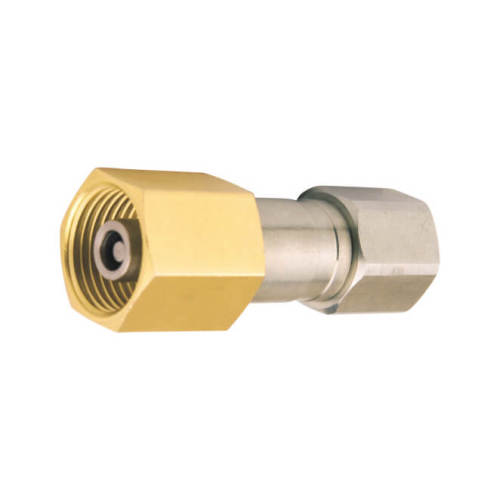

Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFC24114-1/4" | 1/4'' | 51 | S22 | 1/4"NPTF |

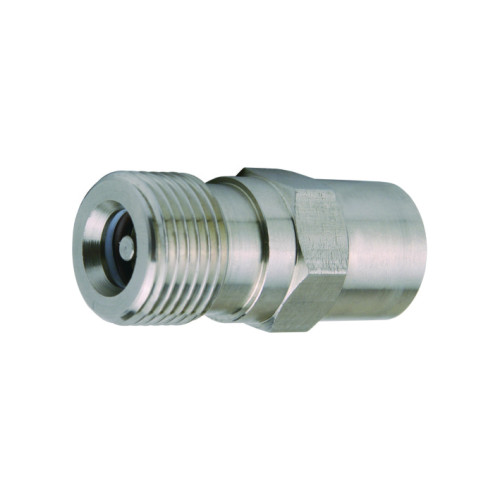

Male
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | CH(mm) | T |
| HFSSFP24114-1/4" | 1/4'' | 70 | S22 | 25 | 1/4"NPTF |
