89 Series | W6000 Screw To Connect Quick Couplings For High Pressure (Steel)
Item specifics
- Interchange
- DNP PVG1 SERIES
- Interchange
- GROMELLE W6000 SERIES
- Interchange
- INTEVA TGW SERIES
- Interchange
- VOSWINKEL HB SERIES
- Interchange
- EATON W6000 SERIES
- Interchange
- STAUFF HB SERIES
Review
Description
89 Series
High Pressure Screw-To-Connect Coupling (Steel)
Poppet Valve
This EH series is interchangeable with DNP PVG1 SERIES, GROMELLE W6000 SERIES, INTEVA TGW SERIES, VOSWINKEL HB SERIES, EATON W6000 SERIES, and STAUFF HB SERIES. High-pressure screw-on couplings engineered for extreme working conditions with frequent pressure spikes. The heavy-duty internal construction ensures optimal safety and reliability. Market Interchange.

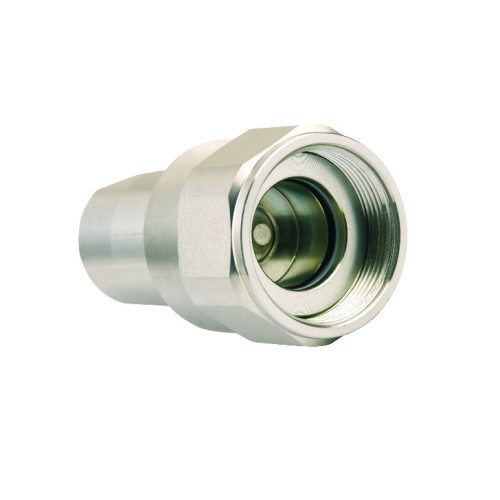

Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | CH1(mm) | Hs(mm) | Ls(mm) | L(mm) | T |
| HFSFC8914-1/4" | 1/4'' | 32 | 19 | 59 | 72 | 1/4"BSPP/NPT |
HFSFC8938-3/8" | 3/8'' | 36 | 22 | 66.5 | 81.5 | 3/8"BSPP/NPT |
| HFSFC8912-1/2" | 1/2'' | 41 | 27 | 76.5 | 98 | 1/2"BSPP/NPT |
HFSFC8934-3/4" | 3/4'' | 50 | 35 | 89.5 | 112 | 3/4"BSPP/NPT |
HFSFC8910-1" | 1'' | 65 | 41 | 105.5 | 132.5 | 1"BSPP/NPT |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | A(mm) | Hp(mm) | Lp(mm) | L(mm) | T |
| HFSFP8914-1/4" | 1/4'' | 15 | 19 | 36 | 72 | 1/4"BSPP/NPT |
| HFSFP8938-3/8" | 3/8'' | 19 | 22 | 40.5 | 81.5 | 3/8"BSPP/NPT |
HFSFP8912-1/2" | 1/2'' | 22 | 27 | 49.5 | 98 | 1/2"BSPP/NPT |
HFSFP8934-3/4" | 3/4'' | 29 | 35 | 56 | 112 | 3/4"BSPP/NPT |
HFSFP8910-1" | 1'' | 36 | 41 | 66 | 132.5 | 1"BSPP/NPT |
