102 Series | ARGENTINA COMEL Quick Coupler (Steel)
Item specifics
- Interchange
- ARGENTINA COMEL E SERIES
Review
Description
102 Series
Hydraulic Special Quick Coupling (Steel)-Poppet Valve
This EH series is interchangeable with the ARGENTINA COMEL E SERIES. Steel Product. The 102 series coupling is a family of quick couplings for hydraulic systems and for high-pressure water. A manually operated locking ring provides extra security against involuntary disconnection. Both steel and brass valves are available.

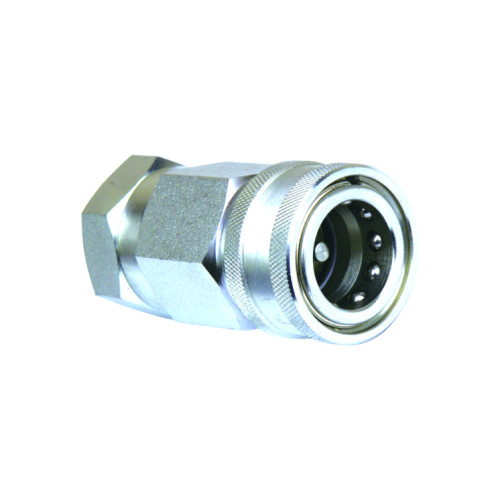

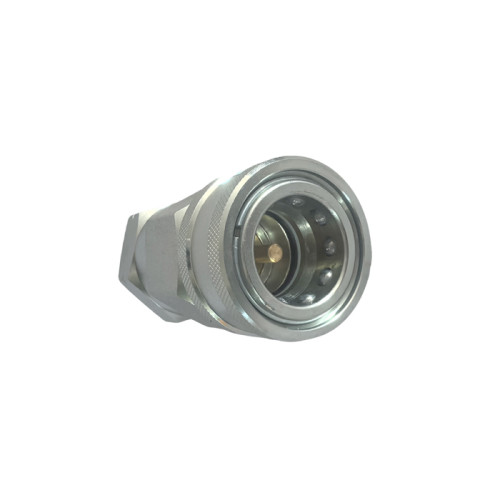

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | H1(mm) | T |
HFSFC10234-3/4" | 3/4'' | 83 | 45 | S39 | 3/4" BSPP(NPTF) |
HFSFC10210-1" | 1'' | 93.5 | 54 | S46 | 1" BSPP(NPTF) |
Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | H1(mm) | T |
HFSFP10034-3/4" | 3/4'' | 80 | S39 | 3/4" BSPP(NPTF) |
HFSFP10010-1" | 1'' | 93.5 | S46 | 1" BSPP(NPTF) |
