84 Series | TURKEY FERRO Screw To Connect Quick Coupling (Steel)
Item specifics
- Interchange
- TURKEY FERRO STHD SERIES
Review
Description
84 Series
High Pressure Screw To Connect Coupling (Steel)
Poppet Valve
This EH series is interchangeable with TURKEY FERRO STHD SERIES. The 84 series features poppet valve quick couplings that are specialized for Turkey, Iran, and the Middle East countries.

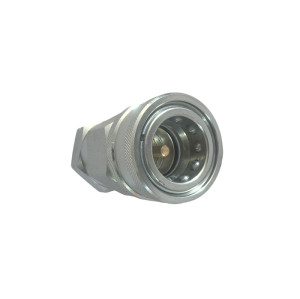

Female
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Ls(mm) | H1(mm) | T |
| HFSFC8414-1/4" | 1/4'' | 55 | S27 | 1/4"BSPP |
HFSFC8438-3/8" | 3/8'' | 61 | S30 | 3/8"BSPP |
HFSFC8412-1/2" | 1/2'' | 68 | S36 | 1/2"BSPP |
HFSFC8434-3/4" | 3/4'' | 82 | S41 | 3/4"BSPP |
HFSFC8410-1" | 1'' | 100 | S50 | 1"BSPP |

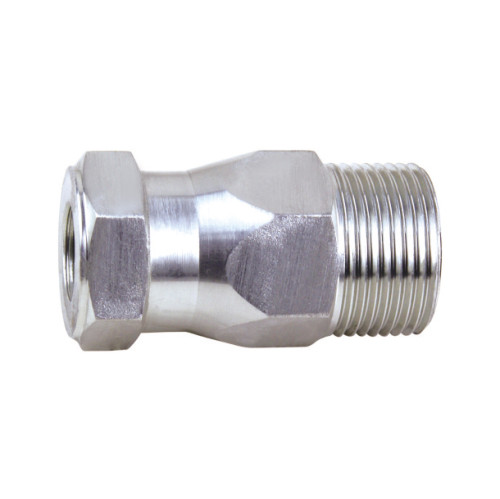

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | C(mm) | H1(mm) | H2(mm) | T |
| HFSFP8414-1/4" | 1/4'' | 41 | 16 | S32 | 16 | 1/4"BSPP |
HFSFP8438-3/8" | 3/8'' | 45.5 | 17 | S36 | 20 | 3/8"BSPP |
HFSFP8412-1/2" | 1/2'' | 48 | 17 | S41 | 25 | 1/2"BSPP |
HFSFP8434-3/4" | 3/4'' | 55 | 18 | S50 | 32 | 3/4"BSPP |
HFSFP8410-1" | 1'' | 66 | 22 | S60 | 40 | 1"BSPP |
