100 Series | Nordic TEMA Model Quick Couplings (Steel)
Item specifics
- Interchange
- CEJN 525 SERIES
- Interchange
- STUCCHI IRC SERIES
- Interchange
- TEMA T SERIES
- Interchange
- PARKER H SERIES
- Interchange
- DIXON TR SERIES
- Interchange
- DNP PTV1 SERIES
Review
Description
100 Series
Manual Locking Ring Coupling (Steel)-Poppet Valve
This EH series is interchangeable with CEJN 525 SERIES, STUCCHI IRC SERIES, TEMA T SERIES, PARKER H SERIES, DIXON TR SERIES and DNP PTV1 SERIES. The 100 Series Interchange Coupler (Nordic-type) combines advanced safety and reliable sealing for demanding hydraulic applications. Its protective safety sleeve prevents accidental disconnection, while the elastomer-sealed poppet valve ensures leak-free performance when disconnected. The series offers dual poppet options—standard and pressure-eliminator variants—to meet diverse system requirements. Designed for flexible operation, these couplers allow connection under residual pressure (male or female side), provided the counterpart is pressure-free, ensuring safe and efficient maintenance in industrial environments. 100 is the standard version, 200 is the connection under pressure version.

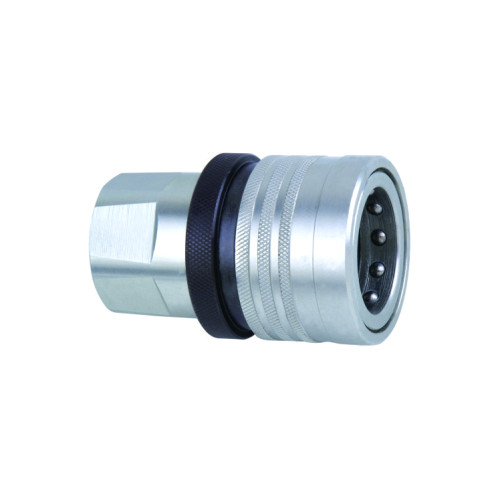

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC10038-3/8" | 3/8'' | 62 | 34 | S24 | 3/8"BSPP |
HFSFC10012-1/2" | 1/2'' | 68 | 40 | S30 | 1/2" BSPP |
HFSFC10034-3/4" | 3/4'' | 79 | 52 | S38 | 3/4" BSPP |
HFSFC10010-1" | 1'' | 92 | 62 | S45 | 1" BSPP |

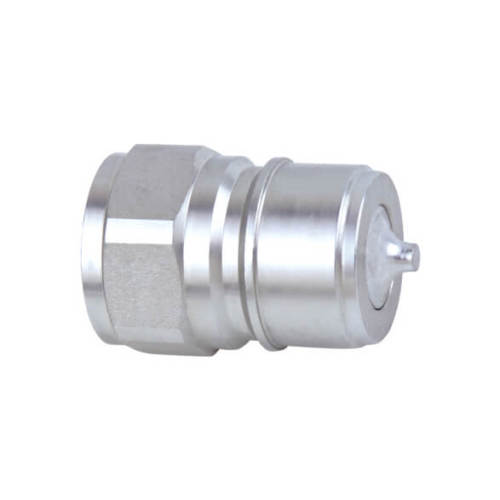

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP10038-3/8" | 3/8'' | 39 | S22 | 3/8"BSPP |
HFSFP10012-1/2" | 1/2'' | 43 | S27 | 1/2" BSPP |
HFSFP10034-3/4" | 3/4'' | 50 | S36 | 3/4" BSPP |
HFSFP10010-1" | 1'' | 56.5 | S45 | 1" BSPP |

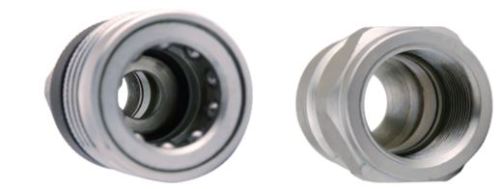

Accessories
available on your request (valveless couplings).
