73 Series | NV STAINLESS STEEL ISO 7241 A Quick Couplings with Poppet Valve (Stainless Steel)
Item specifics
- Interchange
- PARKER 6600 SERIES
- Interchange
- HANSEN HA15000 SERIES
- Interchange
- VOSWINKEL IA-VA SERIES
- Interchange
- FASTER NV STAINLESS STEEL SERIES
- Interchange
- DNP PAVX SERIES
Review
Description
73 Series
Hydraulic Quick Coupling (Stainless Steel)
ISO-7241-A, Poppet Valve
This EH series is interchangeable with PARKER 6600 SERIES, HANSEN HA15000 SERIES, VOSWINKEL IA-VA SERIES, FASTER NV STAINLESS STEEL SERIES, and DNP PAVX SERIES. The 73 series is a poppet-type quick coupler compatible with ISO 7241-1-A standards. Constructed from stainless steel, it ensures global interchangeability and is available in sizes from ¼'' to 2''. Due to its versatility, the 73 series is widely used in hydraulic systems, particularly in agricultural and industrial applications.

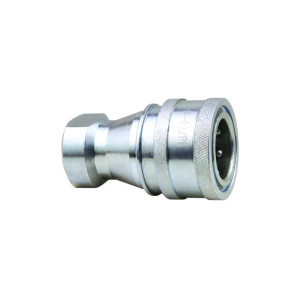

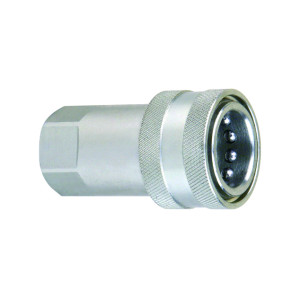

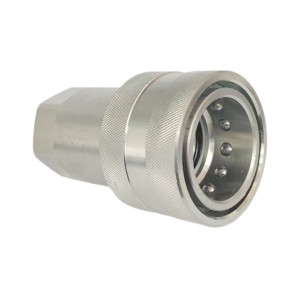

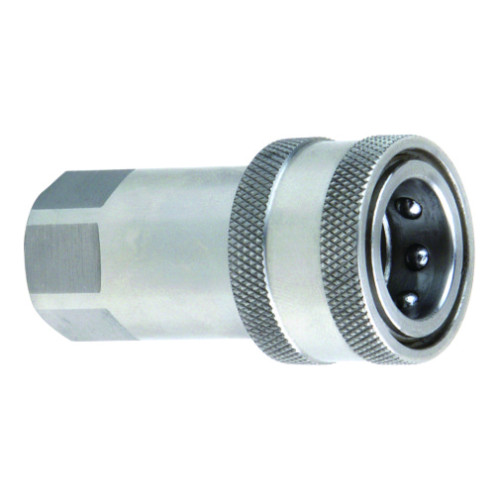

Female
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC7314-1/4" | 1/4'' | 47 | 25 | S19 | 1/4"BSPP(NPT) |
| HFSFC7338-3/8" | 3/8'' | 57 | 31 | S22 | 3/8"BSPP(NPT) |
HFSFC7312-1/2" | 1/2'' | 66 | 38 | S27 | 1/2"BSPP(NPT) |
HFSFC7334-3/4" | 3/4'' | 82.5 | 48 | S34 | 3/4"BSPP(NPT) |
HFSFC7310-1" | 1'' | 97 | 54 | S41 | 1"BSPP(NPT) |
HFSFC73114-1-1/4" | 1-1/4'' | 117 | 70 | S50 | 1-1/4"BSPP(NPT) |
HFSFC73112-1-1/2" | 1-1/2'' | 133.5 | 84 | S60 | 1-1/2"BSPP(NPT) |
HFSFC7320-2" | 2'' | 160 | 100 | S75 | 2"BSPP(NPT) |

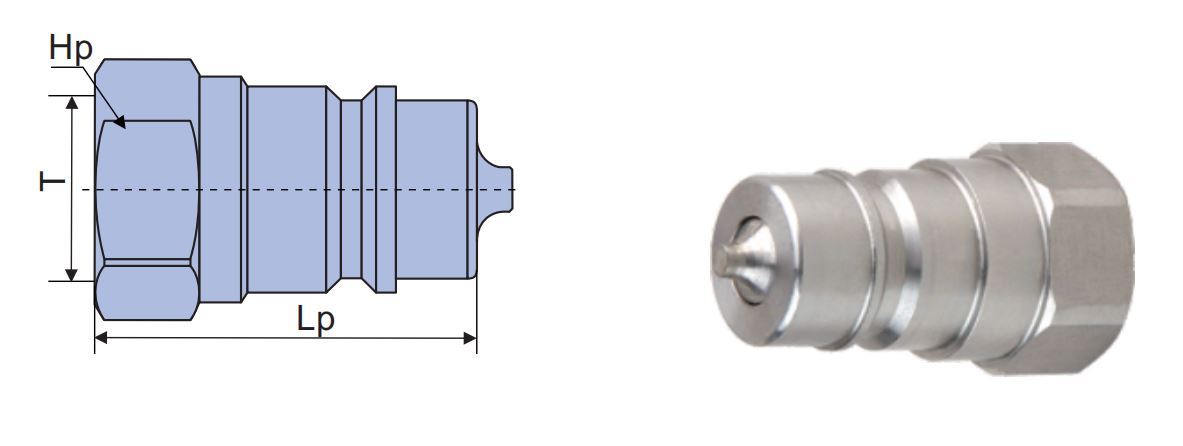

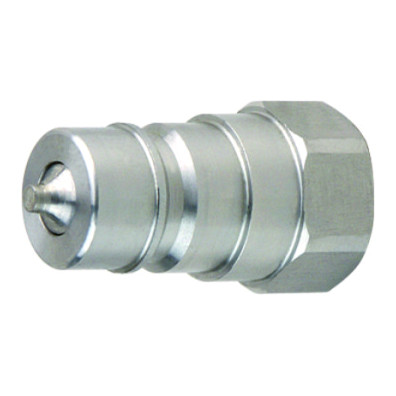

Male
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP7314-1/4" | 1/4'' | 35 | S19 | 1/4"BSPP(NPT) |
| HFSFP7338-3/8" | 3/8'' | 39 | S22 | 3/8"BSPP(NPT) |
HFSFP7312-1/2" | 1/2'' | 46 | S27 | 1/2"BSPP(NPT) |
HFSFP7334-3/4" | 3/4'' | 55 | S34 | 3/4"BSPP(NPT) |
HFSFP7310-1" | 1'' | 63 | S41 | 1"BSPP(NPT) |
HFSFP73114-1-1/4" | 1-1/4'' | 75 | S50 | 1-1/4"BSPP(NPT) |
HFSFP73112-1-1/2" | 1-1/2'' | 83 | S60 | 1-1/2"BSPP(NPT) |
HFSFP7320-2" | 2'' | 100 | S75 | 2"BSPP(NPT) |

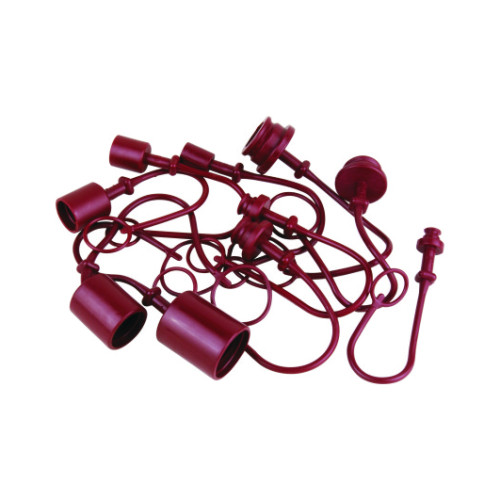

Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-A-1/4-P-P | ISO-A-1/4-C-P | PVC |
| 06 | 10 | ISO-A-3/8-P-P | ISO-A-3/8-C-P | PVC |
08 | 12.5 | ISO-A-1/2-P-P | ISO-A-1/2-C-P | PVC |
12 | 20 | ISO-A-3/4-P-P | ISO-A-3/4-C-P | PVC |
| 16 | 25 | ISO-A-1-P-P | ISO-A-1-C-P | PVC |
