EH1003,1004 Series | Low Pressure Brass Ball Valve (Brass)
Item specifics
- MOQ (Minimum Order Quantity)
- 1000 Pieces
Review
Description
EH1003 Series

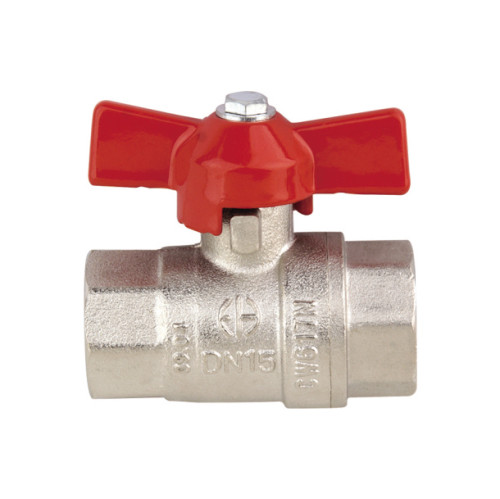

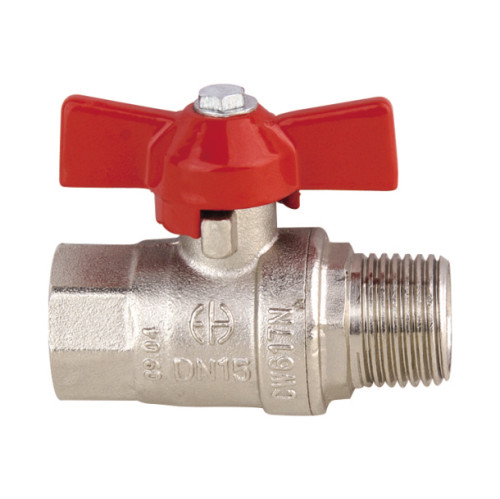

Low Pressure 2-Way Brass Ball Valve, Red Steel Butterfly Handle (Brass)
One-way check valve for in-line use. Suitable for any type of hydraulic system using liquid that is not highly viscous. The standard type is in zinc-plated carbon steel, and it is suitable for non-corrosive mineral-based oils and liquids.
Dimensions
| Other Threads/Fitting Ends Are Available Upon Request | |||||
Body Size(Inch) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
1/4'' | 41.8 | 8 | 21.5 | 53.5 | 36.5 |
3/8'' | 45 | 10 | 25 | 53.5 | 37 |
1/2'' | 53 | 14 | 29 | 53.5 | 39 |
3/4'' | 60.7 | 19 | 35.5 | 53.5 | 41.5 |
1'' | 69 | 23 | 42 | 62 | 50 |
| Other Threads/Fitting Ends Are Available Upon Request | |||||
Body Size(Inch) | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) |
1/4'' | 52 | 8 | 21.5 | 53.5 | 36.5 |
3/8'' | 55 | 10 | 25 | 53.5 | 37 |
1/2'' | 59 | 14 | 29 | 53.5 | 39 |
3/4'' | 68.2 | 19 | 35.5 | 53.5 | 41.5 |
1'' | 76.2 | 23 | 42 | 62 | 50 |
